更多>>歐美ECS-320-6-47B-CKY伊西斯ECS晶振
來源：http://m.meishuila.cn 作者：zhaoxiandz 2026年06月10
微型高精度ECS晶振：賦能無線與音頻領域的精密核心,在物聯網、無線通信與智能音頻設備高速迭代的當下,小型化、高精度、高穩定性的晶振成為電子設備性能升級的核心元器件.ECS晶振歐美ECS品牌旗下ECS-320-6-47B-CKY（ECX-1247B）微型貼片晶振,憑借極致緊湊的尺寸、優異的頻率精度與寬泛的環境適配能力,成為WiFi無線傳輸、射頻識別、音頻解碼等場景的優選核心配件,廣泛適配各類微型化智能電子設備.

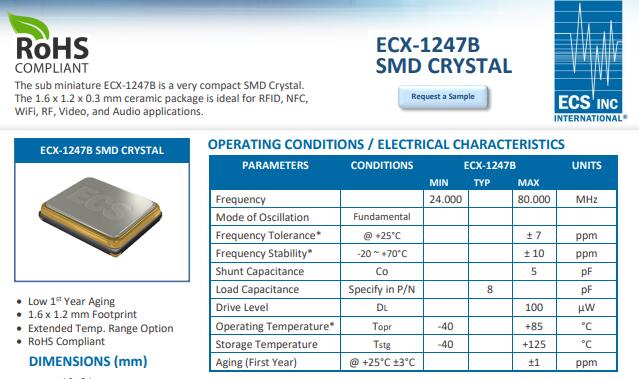

這款晶振采用行業前沿的微型化封裝設計,尺寸僅為1.6 x 1.2 x 0.3毫米,1612超小封裝大幅壓縮了元器件占用空間,完美契合當下電子設備輕薄化、微型化的發展趨勢.相較于傳統無源晶振,其極致緊湊的陶瓷封裝結構,既保留了堅實的物理防護性能,又極大節省了PCB板載空間,可輕松嵌入RFID、NFC近場通信模塊、微型WiFi模組、高清視頻傳輸及專業音頻設備等緊湊型硬件中,適配各類高精度、小體積的電子設計方案.
ECS-320-6-47B-CKY小尺寸晶振,無線WiFi晶振,音頻晶振
ECS-320-6-47B-CKY小尺寸晶振,無線WiFi晶振,音頻晶振
在核心性能參數上,該款ECS晶振具備嚴苛的精密控制能力,標稱頻率32M,負載電容6PF,貼片晶振頻率精度可達10PPM,實現了極低的頻率偏差,保障設備運行過程中時鐘信號、傳輸信號的高度穩定.同時,它支持-30℃至+85℃的寬溫工作范圍,可選擴展溫度區間,能夠適配高低溫復雜工況,無論是戶外智能設備、工業射頻終端,還是家用影音設備,均可保持穩定工作狀態,有效規避溫度波動帶來的信號失真、傳輸卡頓、音頻雜音等問題.

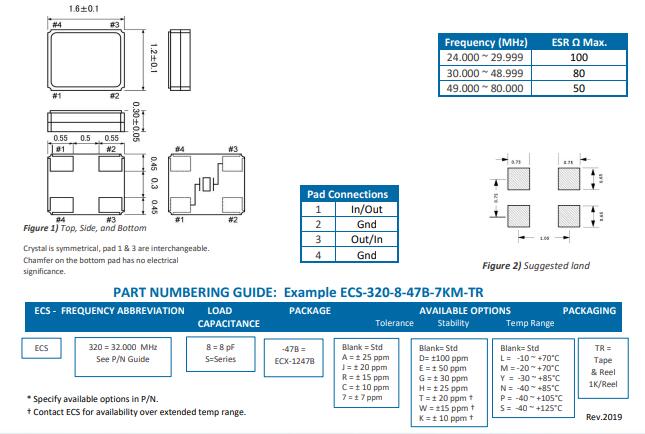

穩定性與耐用性是該晶振的核心優勢之一.產品采用低年度老化工藝制造,長期使用過程中頻率衰減幅度極小,大幅延長設備使用壽命,降低硬件故障與維護成本.在結構設計上,SMD晶振晶體采用對稱布局,1號與3號焊盤可互換,簡化了焊接裝配流程,降低生產容錯成本；底部焊盤倒角無電氣屬性,僅為工藝優化設計,不會影響電路運行穩定性,進一步提升了產品適配性與裝配便捷度.此外,產品嚴格遵循RoHS環保標準,無有害物質析出,符合全球電子行業環保規范,適配各類出口型電子設備.
ECS-320-6-47B-CKY小尺寸晶振,無線WiFi晶振,音頻晶振
ECS-320-6-47B-CKY小尺寸晶振,無線WiFi晶振,音頻晶振
憑借小尺寸、高精度、高穩定性、易裝配、強適配的多重優勢,ECS ECX-1247B晶振精準匹配無線WiFi、射頻通信、身份識別、高清影音等多領域需求.作為歐美精工品質的微型進口晶振代表,它有效解決了傳統晶振體積大、精度不足、環境適應性弱的痛點,為微型智能電子設備的信號穩定、精準運行提供了堅實的核心保障,是現代小型化高精度電子硬件不可或缺的核心元器件.ECS-320-6-47B-CKY小尺寸晶振,無線WiFi晶振,音頻晶振
| ECS原廠料號編碼 | 晶振參數 | 型號 | 頻差 | 腳位 | 尺寸 |
| ECS-.327-12.5-12-TR | CRYSTAL 32.7680KHZ 12.5PF SMD | ECX-12 | - | 2-SMD | 2012 |
| ECS-.327-6-12-TR | CRYSTAL 32.7680KHZ 6PF SMD | ECX-12 | 2-SMD | 2012 | |
| ECS-.327-7-12-TR | CRYSTAL 32.7680KHZ 7PF SMD | ECX-12 | - | 2-SMD | 2012 |
| ECS-.327-9-12-TR | CRYSTAL 32.7680KHZ 9PF SMD | ECX-12 | - | 2-SMD | 2012 |
| ECS-240-8-47-JTN-TR | CRYSTAL 24.0000MHZ 8PF SMD | ECX-1247 | ±20ppm | 4 | 1612 |
| ECS-260-8-47-JTN-TR | CRYSTAL 26.0000MHZ 8PF SMD | ECX-1247 | ±20ppm | 4 | 1612 |
| ECS-320-8-47-JTN-TR | CRYSTAL 32.0000MHZ 8PF SMD | ECX-1247 | ±20ppm | 4 | 1612 |
| ECS-360-8-47-JTN-TR | CRYSTAL 36.0000MHZ 8PF SMD | ECX-1247 | ±20ppm | 4 | 1612 |
| ECS-400-8-47-JTN-TR | CRYSTAL 40.0000MHZ 8PF SMD | ECX-1247 | ±20ppm | 4 | 1612 |
| ECS-480-8-47-JTN-TR | CRYSTAL 48.0000MHZ 8PF SMD | ECX-1247 | ±20ppm | 4 | 1612 |
| ECS-200-8-37CKM | CRYSTAL 20.0000MHZ 8PF SMD | ECX-1637 | ±10ppm | 4 | 2016 |
| ECS-240-8-37CKM | CRYSTAL 24.0000MHZ 8PF SMD | ECX-1637 | ±10ppm | 4 | 2016 |
| ECS-250-8-37CKM | CRYSTAL 25.0000MHZ 8PF SMD | ECX-1637 | ±10ppm | 4 | 2016 |
| ECS-260-8-37CKM | CRYSTAL 26.0000MHZ 8PF SMD | ECX-1637 | ±10ppm | 4 | 2016 |
| ECS-270-8-37CKM | CRYSTAL 27.0000MHZ 8PF SMD | ECX-1637 | ±10ppm | 4 | 2016 |
| ECS-300-8-37CKM | CRYSTAL 30.0000MHZ 8PF SMD | ECX-1637 | ±10ppm | 4 | 2016 |
| ECS-320-8-37CKM | CRYSTAL 32.0000MHZ 8PF SMD | ECX-1637 | ±10ppm | 4 | 2016 |
| ECS-360-8-37CKM | CRYSTAL 36.0000MHZ 8PF SMD | ECX-1637 | ±10ppm | 4 | 2016 |
| ECS-400-8-37CKM | CRYSTAL 40.0000MHZ 8PF SMD | ECX-1637 | ±10ppm | 4 | 2016 |
| ECS-240-10-37Q-ES-TR | CRYSTAL 24.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-250-10-37Q-ES-TR | CRYSTAL 25.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-192-10-37Q-ES-TR | CRYSTAL 19.200MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-200-10-37Q-ES-TR | CRYSTAL 20.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-245.7-10-37Q-ES-TR | CRYSTAL 24.576MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-260-10-37Q-ES-TR | CRYSTAL 26.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-270-10-37Q-ES-TR | CRYSTAL 27.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-271.2-10-37Q-ES-TR | CRYSTAL 27.120MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-300-10-37Q-ES-TR | CRYSTAL 30.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-320-10-37Q-ES-TR | CRYSTAL 32.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-192-10-37Q-EN-TR | CRYSTAL 19.200MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-200-10-37Q-EN-TR | CRYSTAL 20.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-240-10-37Q-EN-TR | CRYSTAL 24.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-245.7-10-37Q-EN-TR | CRYSTAL 24.576MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-250-10-37Q-EN-TR | CRYSTAL 25.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-260-10-37Q-EN-TR | CRYSTAL 26.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-270-10-37Q-EN-TR | CRYSTAL 27.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-271.2-10-37Q-EN-TR | CRYSTAL 27.120MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-300-10-37Q-EN-TR | CRYSTAL 30.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-320-10-37Q-EN-TR | CRYSTAL 32.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-400-10-37Q-EN-TR | CRYSTAL 40.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-480-10-37Q-EN-TR | CRYSTAL 48.000MHZ 10PF SMD | ECX-1637Q | ±50ppm | 4 | 2016 |
| ECS-.327-12.5-12QS-TR | CRYSTAL 32.768KHZ 12.5PF SMD | ECX-12Q | 智能手機石英晶振 | 2, No Lead | 2012 |
| ECS-.327-9-12QS-TR | CRYSTAL 32.768KHZ 9PF SMD | ECX-12Q | - | 2, No Lead | 2012 |
| ECS-.327-7-12QS-TR | CRYSTAL 32.768KHZ 7PF SMD | ECX-12Q | - | 2, No Lead | 2012 |
| ECS-.327-12.5-1210-TR | CRYSTAL 32.768KHZ 12.5PF SMD | ECX-1210 | - | 2-SMD, No Lead | 1210 |
| ECS-.327-9-1210-TR | CRYSTAL 32.768KHZ 9PF SMD | ECX-1210 | - | 2-SMD, No Lead | 1210 |
| ECS-.327-7-1210-TR | CRYSTAL 32.768KHZ 7PF SMD | ECX-1210 | - | 2-SMD, No Lead | 1210 |
| ECS-.327-12.5-12-C-TR | CRYSTAL 32.768KHZ 12.5PF SMD | ECX-12 | - | 2, No Lead | 2012 |
| ECS-.327-9-12-C-TR | CRYSTAL 32.768KHZ 9PF SMD | ECX-12 | - | 2, No Lead | 2012 |
| ECS-.327-7-12-C-TR | CRYSTAL 32.768KHZ 7PF SMD | ECX-12 | - | 2, No Lead | 2012 |
| ECS-.327-6-12-C-TR | CRYSTAL 32.768KHZ 6PF SMD | ECX-12 | - | 2, No Lead | 2012 |
晶振聯系人：龔成
石英晶振振蕩器電話：0755--27876236
QQ：769468702
進口晶振手機：13590198504
陶瓷晶振郵箱:zhaoxiandz@163.com
日本臺灣歐美晶振品牌網站: http: //m.meishuila.cn/
ECS-320-6-47B-CKY小尺寸晶振,無線WiFi晶振,音頻晶振安防GPRS導航晶振
